Flink timer注册与watermark触发

当StreamTask 被调度执行的时候，具体生命周期如
*  -- invoke()
*        |
*        +----> Create basic utils (config, etc) and load the chain of operators
*        +----> operators.setup()
*        +----> task specific init()
*        +----> initialize-operator-states()
*        +----> open-operators()
*        +----> run()
*        +----> close-operators()
*        +----> dispose-operators()
*        +----> common cleanup
*        +----> task specific cleanup()

@Override

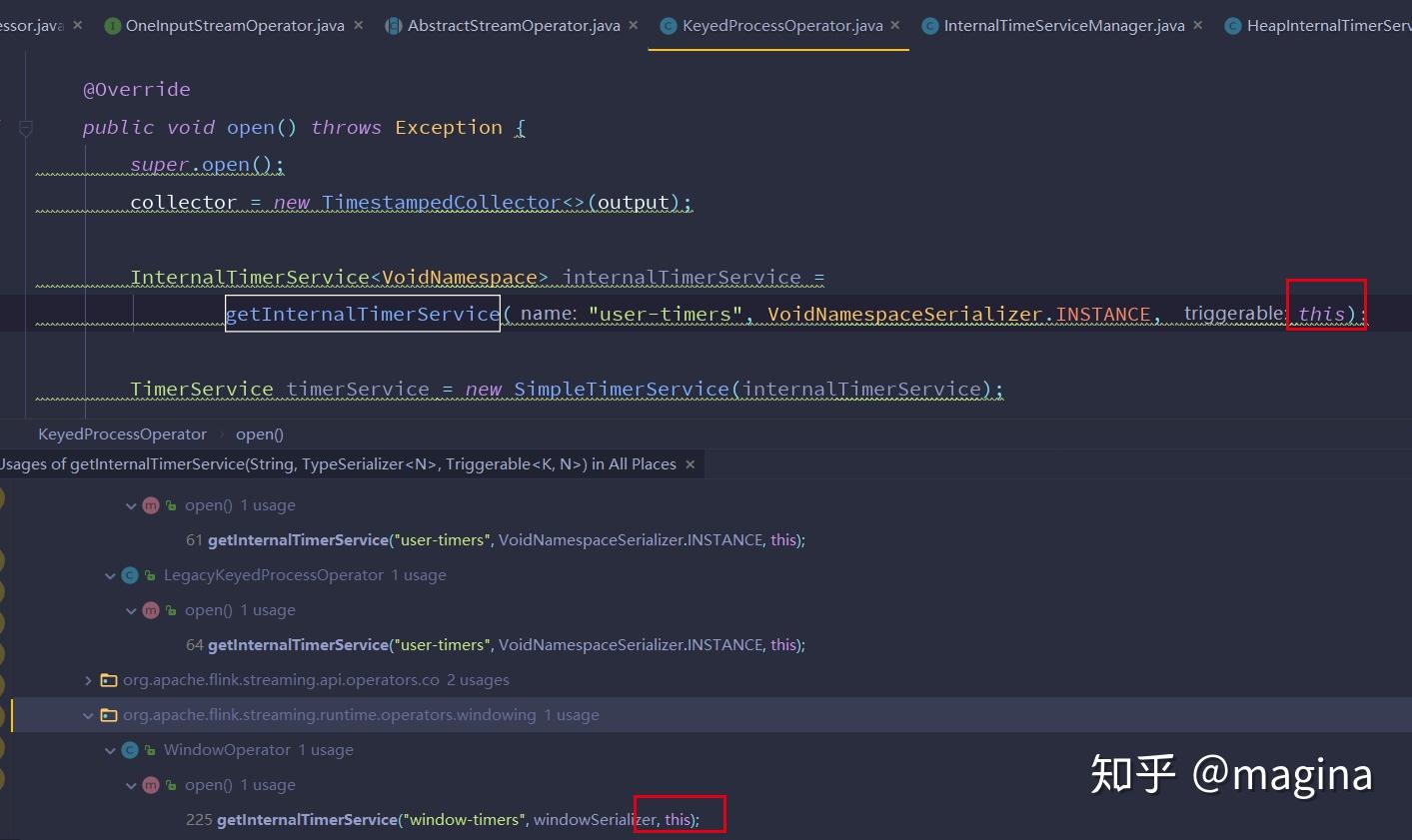

public void open() throws Exception {
   super.open();
   collector = new TimestampedCollector<>(output);

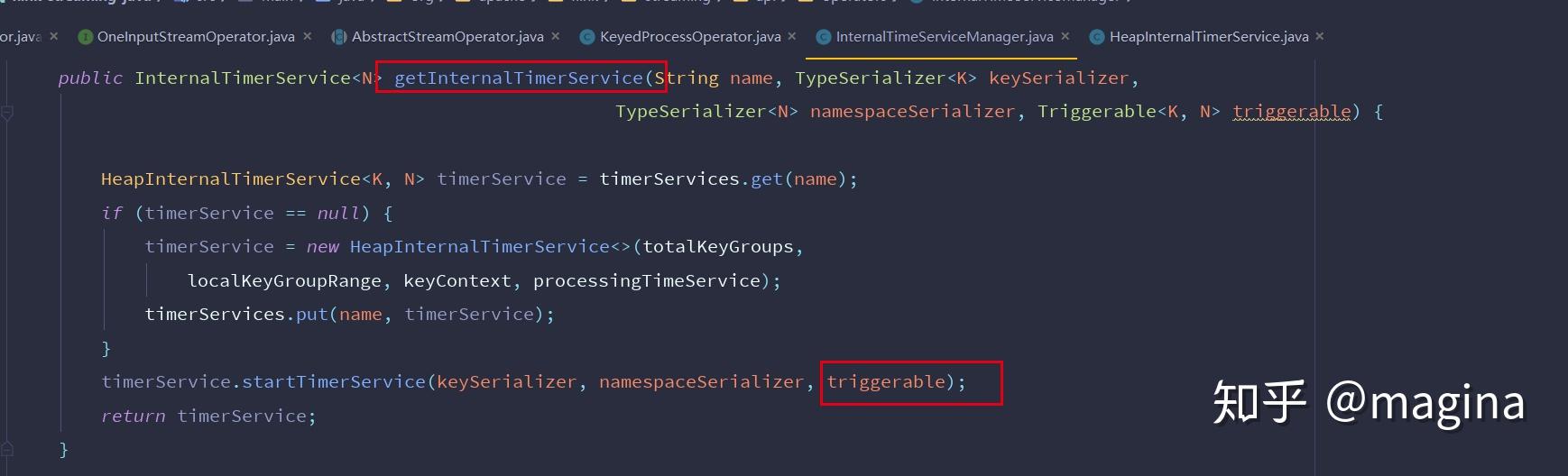

//为该Operator构造InternalTimerService并启动，通过该InternalTimerService可以访问时间
   InternalTimerService<VoidNamespace> internalTimerService =
         getInternalTimerService("user-timers", VoidNamespaceSerializer.INSTANCE, this);

   TimerService timerService = new SimpleTimerService(internalTimerService);

   context = new ContextImpl(userFunction, timerService);
   onTimerContext = new OnTimerContextImpl(userFunction, timerService);
}

@Override
protected void run() throws Exception {
   // cache processor reference on the stack, to make the code more JIT friendly
//在run方法中通过inputProcessor来从input gate里面读取消息，消息可以是正常的数据，也可以是watermark
   final StreamInputProcessor<IN> inputProcessor = this.inputProcessor;

   while (running && inputProcessor.processInput()) {
      // all the work happens in the "processInput" method
   }

   // the input is finished, notify non-head operators
   if (running) {
      synchronized (getCheckpointLock()) {
         OneInputStreamOperator<IN, OUT> headOperator = getHeadOperator();
         for (StreamOperator<?> operator : operatorChain.getAllOperatorsTopologySorted()) {
            if (operator.getOperatorID().equals(headOperator.getOperatorID())) {
               continue;
            }

            Preconditions.checkState(operator instanceof OneInputStreamOperator);
            ((OneInputStreamOperator<?, ?>) operator).endInput();
         }
      }
   }
}

 else {
      // now we can do the actual processing
      StreamRecord<IN> record = recordOrMark.asRecord();
      synchronized (lock) {
         numRecordsIn.inc();
         streamOperator.setKeyContextElement1(record);
//正常数据处理，最终会调用用户实现的userfunction的processElement，对于KeyedProcessOperator就是调用用户定义keyedProcessFunction的processElement
         streamOperator.processElement(record);
      }
   }

   return true;
} else if (recordOrMark.isWatermark()) {
   // handle watermark
   statusWatermarkValve.inputWatermark(recordOrMark.asWatermark(), currentChannel);//处理watermark
   continue;
} else if (recordOrMark.isStreamStatus()) {

public void processWatermark(Watermark mark) throws Exception {
 if (timeServiceManager != null) {
      timeServiceManager.advanceWatermark(mark);//第一步处理watermark
   }
   output.emitWatermark(mark);//第二步，将watermark发送到下游
}

public void advanceWatermark(Watermark watermark) throws Exception {
//这里之前调用getInternalTimerService构建的的InternalTimerService都要处理该watermark
   for (HeapInternalTimerService<?, ?> service : timerServices.values()) {
      service.advanceWatermark(watermark.getTimestamp());
   }
}

public void advanceWatermark(long time) throws Exception {
   currentWatermark = time;//更新当前watermark

   InternalTimer<K, N> timer;
 //取出所有低于watermark的timer触发回调。
   while ((timer = eventTimeTimersQueue.peek()) != null && timer.getTimestamp() <= time) {

      Set<InternalTimer<K, N>> timerSet = getEventTimeTimerSetForTimer(timer);
      timerSet.remove(timer);
      eventTimeTimersQueue.remove();

      keyContext.setCurrentKey(timer.getKey());
      triggerTarget.onEventTime(timer);//这里的triggerTarget就是具体的operator对象，
   }
}

@Override
public void onEventTime(InternalTimer<K, VoidNamespace> timer) throws Exception {
   collector.setAbsoluteTimestamp(timer.getTimestamp());
   invokeUserFunction(TimeDomain.EVENT_TIME, timer);
}
private void invokeUserFunction(
      TimeDomain timeDomain,
      InternalTimer<K, VoidNamespace> timer) throws Exception {
   onTimerContext.timeDomain = timeDomain;
   onTimerContext.timer = timer;
   userFunction.onTimer(timer.getTimestamp(), onTimerContext, collector);//这里就是前面用户实现的onTimer方法
   onTimerContext.timeDomain = null;
   onTimerContext.timer = null;
}

/**
 * Interface for working with time and timers.
 */
@PublicEvolving
public interface TimerService {

   /** Returns the current processing time. */
   long currentProcessingTime();

   /** Returns the current event-time watermark. */
   long currentWatermark();

   /**
    * Registers a timer to be fired when processing time passes the given time.
    *
    * <p>Timers can internally be scoped to keys and/or windows. When you set a timer
    * in a keyed context, such as in an operation on
    * {@link org.apache.flink.streaming.api.datastream.KeyedStream} then that context
    * will also be active when you receive the timer notification.
    */
   void registerProcessingTimeTimer(long time);

   /**
    * Registers a timer to be fired when the event time watermark passes the given time.
    *
    * <p>Timers can internally be scoped to keys and/or windows. When you set a timer
    * in a keyed context, such as in an operation on
    * {@link org.apache.flink.streaming.api.datastream.KeyedStream} then that context
    * will also be active when you receive the timer notification.
    */
   void registerEventTimeTimer(long time);
}
